intermittent roof problems

Post by wetpee » Wed Jun 22, 2022 10:18 pm

RobbiZ4 wrote: Sat Jun 18, 2022 11:43 am To move the arm, the brass valve to the front has to be released.
Do you mean the brass valve on the pump or this piece on the ram?
2019 WRX STI :wink:

User avatar
RobbiZ4
Member
Member
Posts: 782
Joined: Wed May 16, 2018 10:12 am
Location: Munich
Contact:

intermittent roof problems

Post by RobbiZ4 » Wed Jun 22, 2022 10:48 pm

wetpee wrote: Wed Jun 22, 2022 10:18 pm
RobbiZ4 wrote: Sat Jun 18, 2022 11:43 am To move the arm, the brass valve to the front has to be released.
Do you mean the brass valve on the pump or this piece on the ram?
This is the end of a hydraulic hose, no valve.
The brass valves are on top of the hydraulic pump. Touch it very, very carefully to not destroy the pump!

On the right, you can see a black hall sensor put into this hydraulic ram.
Last edited by RobbiZ4 on Thu Jun 23, 2022 11:51 am, edited 1 time in total.
:spy: :ant:
Y3 Roof Diagnostic System
viewtopic.php?f=23&t=129048

E89 Roof Maintenance
viewtopic.php?t=130932

About the minions
viewtopic.php?p=1861035#p1861035

wetpee
Newbie
Newbie
Posts: 9
Joined: Fri Jun 17, 2022 2:12 am

intermittent roof problems

Post by wetpee » Wed Jun 22, 2022 11:34 pm

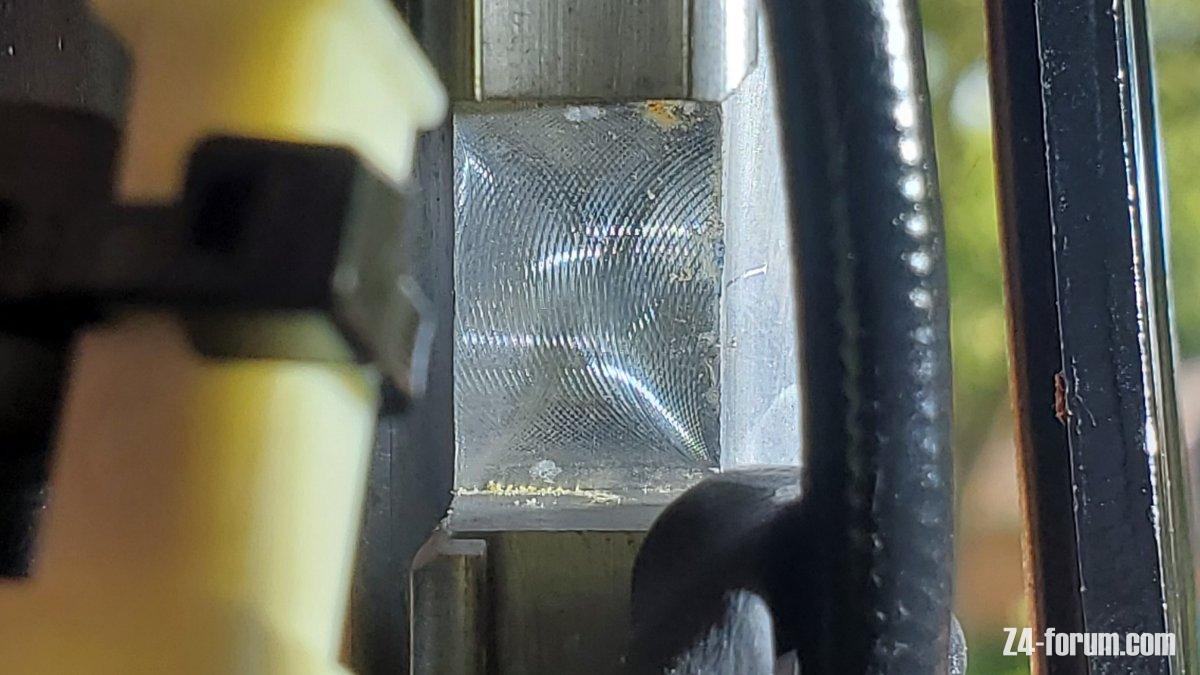

Picture of the front sensor and it's slot on the ram:
I'm guessing by your explanation that this sensor is definitely toast. Do the newer sensors have an updated design that prevents this kind of failure? Is there a precaution we can take in an attempt to extend it's life?

Thanks,
Evan J
2019 WRX STI :wink:

Smokss
Newbie
Newbie
Posts: 1
Joined: Thu Jun 23, 2022 1:57 am

intermittent roof problems

Post by Smokss » Thu Jun 23, 2022 2:25 am

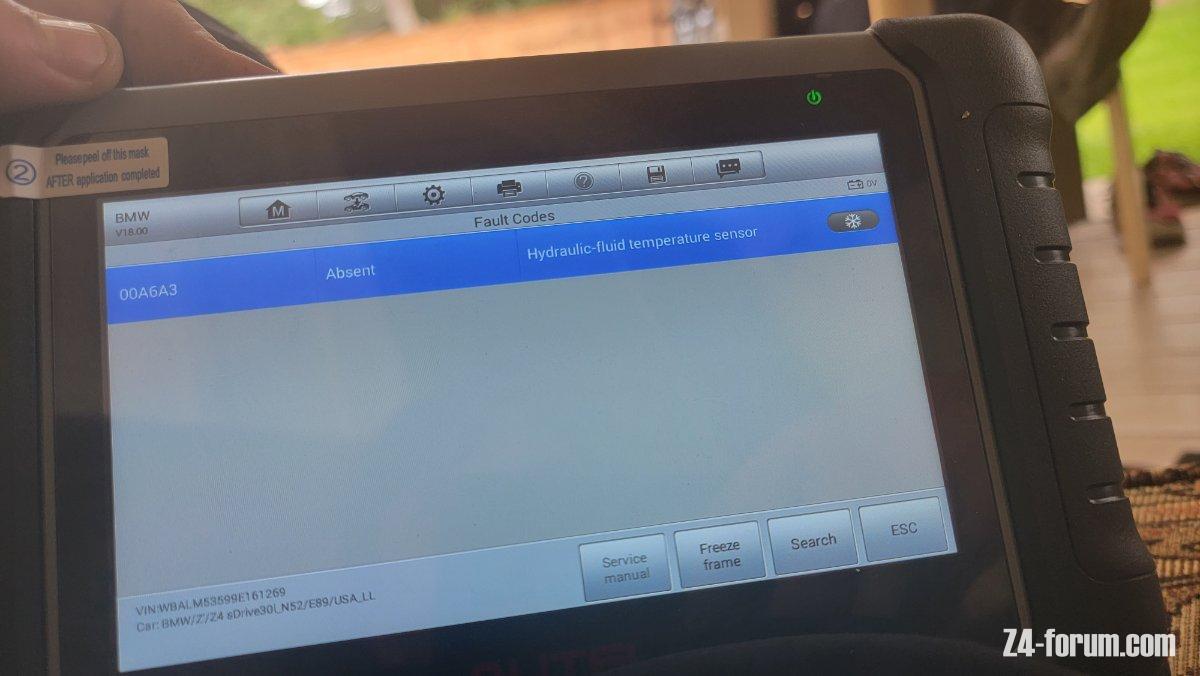

Guys help, The problem with the roof, an error on the computer shows (HYDRAULIC-FLUID TEMPERATURE SENSOR)I took off the hydro engine to clean everything, put the same thing back, changed two relays.where to look for a temperature sensor
Attachments

User avatar
RobbiZ4
Member
Member
Posts: 782
Joined: Wed May 16, 2018 10:12 am
Location: Munich
Contact:

intermittent roof problems

Post by RobbiZ4 » Thu Jun 23, 2022 10:08 am

wetpee wrote: Wed Jun 22, 2022 11:34 pm Picture of the front sensor and it's slot on the ram:
I'm guessing by your explanation that this sensor is definitely toast.
Yes, this one is firing wrong signals. Get it replaced by a cheaper one from the E88 convertible. Lot's of infos in this forum. No precautions possible.

What about the 2nd HS on the same ram? Don't forget to renew the zip tie around the rear HS with the red wire.
Last edited by RobbiZ4 on Thu Jun 23, 2022 11:31 am, edited 1 time in total.
:spy: :ant:
Y3 Roof Diagnostic System
viewtopic.php?f=23&t=129048

E89 Roof Maintenance
viewtopic.php?t=130932

About the minions
viewtopic.php?p=1861035#p1861035

User avatar
RobbiZ4
Member
Member
Posts: 782
Joined: Wed May 16, 2018 10:12 am
Location: Munich
Contact:

intermittent roof problems

Post by RobbiZ4 » Thu Jun 23, 2022 11:10 am

Smokss wrote: Thu Jun 23, 2022 2:25 am Guys help, The problem with the roof, an error on the computer shows (HYDRAULIC-FLUID TEMPERATURE SENSOR)I took off the hydro engine to clean everything, put the same thing back, changed two relays.where to look for a temperature sensor
I'm pretty sure that there is/was a massive water ingress in the boot before.
This error only occurs, if the temp sensor (NTC) got destroyed by water. It's sitting inside of the hydraulic pumps motor.
Please provide a picture from the BOTTOM of the pumps motor!

Check the two violet wires on the 4-pole motor plug. Should be sth. around 50k ohms at 25°C.

WBALM53599E161269
:spy: :ant:
Y3 Roof Diagnostic System
viewtopic.php?f=23&t=129048

E89 Roof Maintenance
viewtopic.php?t=130932

About the minions
viewtopic.php?p=1861035#p1861035

wetpee
Newbie
Newbie
Posts: 9
Joined: Fri Jun 17, 2022 2:12 am

intermittent roof problems

Post by wetpee » Fri Jun 24, 2022 6:34 pm

RobbiZ4 wrote: Thu Jun 23, 2022 10:08 am Get it replaced by a cheaper one from the E88 convertible. Lot's of infos in this forum. No precautions possible.

What about the 2nd HS on the same ram? Don't forget to renew the zip tie around the rear HS with the red wire.
The condition of the second sensor was definitely not as obvious as the first. it looks fine but there was rust in it's slot on the ram so we're opting to replace it. Zip ties are plentiful here and we took tons of pictures so we should be good there. Luckily we were able to get two e88 sensors ordered from our local dealer ~$20USD each. Picked em up yesterday. Relays came yesterday as well.

A couple questions before we get started:
1) Does it matter which way we solder up the new sensor? the e88 sensors have the brown wires placed opposite that of the e89 sensors and my friend was saying brown is always ground (negative?) for BMW. I have tons of soldering experience but I'm no electrical engineer.
2) This heat shrink on the sensor with the longer wires is quite thick and looks shinier than the polyplefin stuff I get. Any idea what material it is? From McMaster Carr I see Silicone Rubber which is described as "Continuous-Flex Abrasion Resistant".

Thanks,
Evan J
Last edited by wetpee on Fri Jun 24, 2022 8:50 pm, edited 4 times in total.
2019 WRX STI :wink:

User avatar
RobbiZ4
Member
Member
Posts: 782
Joined: Wed May 16, 2018 10:12 am
Location: Munich
Contact:

intermittent roof problems

Post by RobbiZ4 » Fri Jun 24, 2022 8:36 pm

Perfect!
RobbiZ4 wrote: Mon Apr 25, 2022 9:04 am Can be replaced by a cheap HS from an E88.
viewtopic.php?p=1899461#p1899461

Keep care on the colour orientation: colour to colour, brown to brown. 8)
Last edited by RobbiZ4 on Fri Jun 24, 2022 10:32 pm, edited 1 time in total.
:spy: :ant:
Y3 Roof Diagnostic System
viewtopic.php?f=23&t=129048

E89 Roof Maintenance
viewtopic.php?t=130932

About the minions
viewtopic.php?p=1861035#p1861035

flybobbie
Lifer
Lifer
Posts: 3166
Joined: Sat May 25, 2013 8:27 pm
Location: Stourbridge

intermittent roof problems

Post by flybobbie » Fri Jun 24, 2022 9:47 pm

Yes don't get the wires crossed.
When i did pressing the close button makes the roof open!

Ebeneezer
Member
Member
Posts: 69
Joined: Wed Dec 30, 2015 10:32 pm
Location: Lincoln

intermittent roof problems

Post by Ebeneezer » Tue Jun 28, 2022 3:02 pm

I have an issue on my E89 which started last Sunday. I fitted a roof module recently but hadn’t got it “coded” but found it would open/close the roof on a long press of the key. Now it will open all the way but not raise the windows as it did, when it comes to closing it raises the boot, stacks the 2 roof sections and locks the front to the screen frame and closes the boot down but will not lower the rear part of the roof.
Is it possible this could be a “Salmon” relay fault? The car is a 2011 and I have no idea if they have ever been changed. I’m going to see if my Foxwell NT 350 can find any faults though I’m not hopeful.

Thanks for any help.

Tony.
www.orlandowishesvilla.com
The place to have a Z roadster.

thee89
Newbie
Newbie
Posts: 5
Joined: Thu Jun 16, 2022 6:18 am

intermittent roof problems

Post by thee89 » Wed Jun 29, 2022 5:21 am

Okay! so we replaced the two hall sensors on the ram, and got full control of the hard top back. while moving it, i heard a whining noise that wasn’t there and we noticed a spray of hydraulic fluid, and so being unable to tell where exactly it was spraying from, we tightened the brass valve which was only hand tight and moved it again, the whining had stopped but we heard a hissing noice and noticed bubbling towards the bottom hoses. we then looked at the fluid level and the resovoir was basically empty, but it didn’t seem as though we lost that much fluid. we left rags underneath to soak up the fluid and took photos of the bottom of the pump while doing so but don’t recall if the corrosion we saw was present before we started messing with the pump earlier on.
is the condition of this something to worry about

User avatar
RobbiZ4
Member
Member
Posts: 782
Joined: Wed May 16, 2018 10:12 am
Location: Munich
Contact:

intermittent roof problems

Post by RobbiZ4 » Wed Jun 29, 2022 8:03 am

Ebeneezer wrote: Tue Jun 28, 2022 3:02 pm Is it possible this could be a “Salmon” relay fault? The car is a 2011 and I have no idea if they have ever been changed.
Hi Tony,
Why not just renew both, as has been strongly recommended for years?

Relay issues never will be documented as fault code, except it's missing.
viewtopic.php?t=130932
:spy: :ant:
Y3 Roof Diagnostic System
viewtopic.php?f=23&t=129048

E89 Roof Maintenance
viewtopic.php?t=130932

About the minions
viewtopic.php?p=1861035#p1861035

User avatar
RobbiZ4
Member
Member
Posts: 782
Joined: Wed May 16, 2018 10:12 am
Location: Munich
Contact:

intermittent roof problems

Post by RobbiZ4 » Wed Jun 29, 2022 8:07 am

thee89 wrote: Wed Jun 29, 2022 5:21 am Is the condition of this something to worry about?
Yes, of course. If the hydraulic pump is lying in a wet foam, it get's rusty on the bottom as well as INSIDE of the motor on the right!

And more important: Hydraulic fluid is NEVER consumed by the system. If it is missing, a hydraulic line is broken.
:spy: :ant:
Y3 Roof Diagnostic System
viewtopic.php?f=23&t=129048

E89 Roof Maintenance
viewtopic.php?t=130932

About the minions
viewtopic.php?p=1861035#p1861035

User avatar
RobbiZ4
Member
Member
Posts: 782
Joined: Wed May 16, 2018 10:12 am
Location: Munich
Contact:

intermittent roof problems

Post by RobbiZ4 » Wed Jun 29, 2022 8:10 am

Smokss wrote: Thu Jun 23, 2022 2:25 am Guys help, The problem with the roof[..]
Well I love that! Place a call for help and never come back. :headbang: :poke:
:spy: :ant:
Y3 Roof Diagnostic System
viewtopic.php?f=23&t=129048

E89 Roof Maintenance
viewtopic.php?t=130932

About the minions
viewtopic.php?p=1861035#p1861035

Ebeneezer
Member
Member
Posts: 69
Joined: Wed Dec 30, 2015 10:32 pm
Location: Lincoln

intermittent roof problems

Post by Ebeneezer » Wed Jun 29, 2022 10:57 am

Fair comment re the Salmon relays, it may have been known about for years but I’ve only had the car for less than one year!
I did find a code stored stated as “Soft top module CTM” A694 Microswitch “cowl panel reached” and some other historic codes. I cleared all and roadtested and read codes again. None returned as yet and roof works ok.

Tony.
www.orlandowishesvilla.com
The place to have a Z roadster.
