Z4 E89 Rear Camera

C

cornellazar

Member
Any recommendations for a great rear cam for the E89? And how easy would it be to install it. I want the rear cam to operate when shifting into reverse gear. Maybe also the option to switch it on manually through the navigation screen.

First time poster - apologies if this has been asked here previously (I couldn't find it). Thanks! :thumbsup:

Welcome, and to your first post.

There are add-on modules that will do what you're wanting to do. Some are quite expensive (£500+) and some are much cheaper (£150+ on Allibaba.com) depending on how you like to do business.
Unless someone comes up with a "go-to" answer, then I'd be Googlling "BMW e89 rear camera" and do some reading (you can also have a front camera!!)
Best of luck

And a post and thread just recently started on the subject complete with a link...

https://z4-forum.com/forum/viewtopic.php?f=23&t=111779

Thanks! Yes, a front cam would be cool, too. Really depends on the price.

I saw some cheaper rear cams (about £40) but wasn't overly convinced. Following your advise and price guide, I found these below.

Here a few - I'm a bit at a loss which of the options would work for my model (Z4 28iM / Sep. 2011):
https://www.nav.tv/manufacturer/z4

And this - quiet pricey but the marketing blurb sounds amazing :lol: :)
https://www.carcommunications.co.uk/bmw-z4-e89-rear-camera-kit-for-cic-navigation-systems

My recently acquired 2012 28i has a rear and forward camera attached, installed only 12 months ago. Having a reverse camera is great but the forward camera is perfect for nose in parking. Unfortunately the details I have don't reveal the brand of cameras or video interface but the installers website might reveal more www.drivesound.com.au Obviously this is for info only as Im in Australia but the expensive bits were the Video Interface and installation. All up $A1500.00

hi [ref]AnubisZed[/ref],
I'd like to get to the license plate wiring w/o removing the bumper and I thought looking at the trim on the apron https://www.newtis.info/tisv2/a/en/...window-storage-shelf-roller-sunblind/8IFeuBXH, that I may be able to access it - what do you think?

if yes, all I need is this so called box spanner special tool https://www.newtis.info/tisv2/a/en/...-window-storage-shelf-roller-sunblind/53vkiSv - google search doesn't came up with useful results to buy, do you know perhaps what to look for?

thanks again :)

I have no idea where that panel takes you but from what I do know it doesn't give you access to the rear bumper, see photo.....20161017_115222_zpsppnfsciq.jpg

newbie question: do I need a 4 pin relay for voltage or just simply connect the cam's 12V wire to where?

this is the cam wiring and the video unit takes care of switching the view when in reverse


Yes I recommend a relay.
Jump to 16:20 and it'll show the wiring and where to run it...… https://www.youtube.com/watch?v=j-I2KSQxYb8&t=

AnubisZed said:
I have no idea where that panel takes you but from what I do know it doesn't give you access to the rear bumper, see
Click to expand...
yeah, I only wanted to fish/lead cables through the wholes, but it takes removing almost all the boot trim just to remove the apron cover
I figure it is not worth as it may not even let me do what I want, so going the bumper way

pls ignore, I'm getting power and ground for the cam from the video unit :headbang:

all I need is to lead these wires back to the boot and connect to the cam

plus pray that reverse is detected via CAN-BUS (but got the wire for that too from the device, if not)

so, who needs a 4-pin relay? :rofl:

It's an Add-A-Fuse Mini Piggyback fuse holder, and it goes in the fuse box. You remove a fuse and plug that into the lower two holes (closest to the blades) then put you new fuse for the circuit you are adding into the top two holes. Then you plug it back into where the fuse came from, but you have to get it the right way round. I used fuse 69 which is a permanent live, with the new wire pointed to the left.

https://www.ebay.co.uk/itm/401338750143?ul_noapp=true

camera wires are in the boot :)

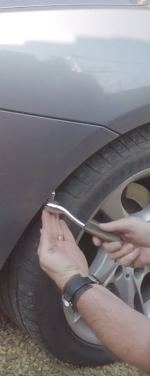

I didn't expect to remove the tyres to be able to do this part:

Screenshot 2019-05-11 at 21.05.20.png

lost a lot of time trying to do it like Dave, there was not enough room and couldn't see the screw at all

had to take off the tyres (19") at the end :x

at least I can continue tomorrow :D

all works :rofl:

gear is detected via CAN-BUS and the usual expected stuff

and I didn't lose Android projecting to CID either :D (same device for cam and HDMI)

front cam option is interesting - how is that input triggered? or is it always live on ignition and just selected by input on the stereo?
