pinout for convertible hard top e89 module

[mcflin]

looking for the actual pin numbers on the module or plug Can someone help me out as I am wanting to bypass a microswitch to open hood for repairs
thank you regards Lyn in New Zealand



[peter2704]



[peter2704]

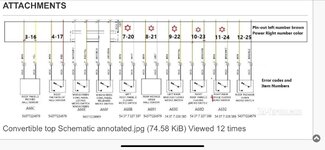

is this it ?? came in handy for me on mine



[Chippie]

Here’s a link to a post where someone was after the same thing.

Post in thread 'e89 ctm wiring diagram'

Apr 29, 2025

Just had a look at ista mine doesn’t go into detail on hall sensors

Would you be good enough to have a look please and tell me what pins the two hall sensors on the right hand ram go to on the CVM please?

One is yellow and brown the other is red and brown wiring

I need to do some continuity checks

Thank you

Stuart

I haven’t had chance to look in ISTA but here’s a Dropbox link that Anubiszed had previously posted
https://www.dropbox.com/s/eh390qs5yutmtg2/BMW%20E89%20Complete%20Vehicle.pdf?dl=0
Let me know if it’s any good, if not I can look at ISTA later.

...

• Chippie

•



[mcflin]

thanks guys but it does not show which pin number is which on the plug pr socket ,your thoughts



[Chippie]

You could check the colours of the wires going to the pins to establish what order they run in?



[mcflin]

thanks chippie that did it well done
