Headlight Overhaul E85

Post by R7VOX » Fri Oct 30, 2015 2:25 pm

I have written this article to assist anyone intent on overhauling the general exterior and internals of the headlight as there seems to be no subject on how the whole thing can be broken into component parts for cleaning, inspection and repair. It may also be a help should you wish to remove the OEM running light and put in an Angel Eye upgrade or update to HID if you are running the candle light option.

The headlight is quite easy to work on. Just very labour intensive getting it off the car. However it is a rewarding project to undertake as I have annotated the photographs with skitch to help identify certain parts to aid the overhaul. I hope you don’t find it too irksome.

I had a real niggling problem of the driver side headlight shaking about a little when driving and decided to overhaul the interior to see what the actual cause of the fault is and whether it can be rectified.

The best way to overhaul the part is to get it off the car, then it can be worked on a lot easier and should the plexiglass need refurbishing (which I am also doing), it can be done without harm to the surrounding paintwork.

There is another how to on this forum to remove the front bumper to access the headlights. I won’t go into that as someone else has taken the time and effort to put that “how to” together.

Because the headlight is being taken out of the car and the car was not being moved at all. I was lucky enough to have the space to mark the location of where the headlight beams fire onto a wall. noting the exact location with masking tape of where the intensity of the beam fires. this will aid on final reassembly and minor adjustment of beam patterns when fully refurbished.

I had taken a photograph of the beam pattern so I can cross reference it later on on re-assembly.

---------------------------------------------------------------------------------------------------------------------------------------------------------

TOOLS REQUIRED

Needle nose pliers & curved pair if you have them
extra long 7mm & 9mm socket, ratched and accessories
T15 Torx bit and driver
Vacuum Cleaner
(Air Compressor)

Good Quality wax
Metal Polish
Very Soft Polishing Cloths
Silicone Grease
Penetrating Lubricant

TIME

Allow a day for the job. This does not want to be rushed.
---------------------------------------------------------------------------------------------------------------------------------------------------------

Once the bumper and lights have been removed, I cleaned the outside of the whole unit carefully as it was filthy from years of being in situ, and since the internals were going to be worked on it was good practice to not cross contaminate the internal parts.

Removal of the back plate reveals the birds nest of the HID kit I fitted in a previous post as this is a standard headlight set, not the Xenon upgrade, however I suspect the internals are pretty much the same and the process of removal and refurbishment will be the same.

---------------------------------------------------------------------------------------------------------------------------------------------------------

REMOVAL OF DIPPED BEAM LENS CARRIER



Removal of all the bulbs and the HID unit frees up space to access the 4 7mm nylock nuts that holds the dipped beam lens carrier. (Mark an arrow one side to aid orientation on re-assembly). I found on one occasion the 7mm nut undid the whole bar which screws into the main assembly (which need to be removed later on).


Now the lens is free, it can be disassembled a bit more to allow cleaning. The top cowl has 2 lugs that bend straight and slide off to get access to the reflector,the small metal beam compensation tab underneath and inside of the lens itself. The lens is held in place by an expasion spring that runs around the perimeter of the interior of the carrier. Mine was slightly loose, so I gently pushed it home and secured it with a dab of epoxy.





The lens was exceptionally opaque from years of heat and condensation (this headlight suffered from a bad access seal before replacement).

I polished all the interior parts and the lens with some collonite 915 wax polish to prevent clouding again in the future. Metal polish would be far too abrasive and damage the finish.


You can see the difference in the photo below.


The cowl was polished with metal polish as it had tarnished limiting the reflective quality to assist the bulb.

Reassembly of the cowl is the reverse of removal, ensuring the lip is pushed firm against the main assembly when the tabs are folded back down.

Once the lens carrier is fully assembled check to make sure the beam adjuster lever is in the correct position and place it aside for assembly later……

---------------------------------------------------------------------------------------------------------------------------------------------------------

REMOVAL OF MAIN BEAM CARRIER



As seen from the photograph, one of the plastic lugs has broken completely. The plastic is quite brittle as it seems that it had been broken some time. I suspect this may be the source of the wobble as the bolts holding the whole assembly together were loose.

Removal is starting with a 9mm spanner, but you should be able to remove by hand as they are very loose. be sure to retain the little rubber washers as they have a habit of hiding up in the assembly.


Remove the servo motor next by the 2 T15 torx screws at the front, then slide the motor sideways before withdrawing it. I left the wires connected to the main assembly and secured the motor with some tape.


The picture above shows the joint the servo sits in. remove the joint as well with a T15 torx.


The 2 main brackets can now be undone with T15 torx and moved aside. The minor adjustment mechanism does not need to be touched which is handy as the light pattern should be exactly the same when finished.

Underneath in the headlight unit is the indicator bulbs which can be inspected and removed if necessary whilst you have the bonus of extra space.

The whole part can now be gently removed. I was extremely careful removing this part as the plastic is only chromed lightly as may scratch or come off easily.


The assembly can now be gently polished and cleaned. Like I said before, it is very delicate and a rough cloth or dirt will cause scratches or lift the chrome. I used the Collinite 915 again to buff up and shine with the softest cloth I could find.

Check the mounting lugs to ensure they are not damaged. I put epoxy resin round all of mine to ensure they were sturdy for re-assembly.

This is as much of the light that can be removed without breaking the waterproof seal and pulling the plastic front off. There is a way it can be done by baking the light to free up the sealant, but I found the process far to invasive and risky to ruin the plexiglass when you can reach inside and clean the interior by hand even though this can be awkward.

I cleaned the inside of the light by a good squirt of low pressure compressed air to expell as much filth and then proceeded to clean and wax with the same cloth used for the main beam carrier. Surprisingly, it was rather dusty and a little opaque film had coated the inside. I used a long bendy pencil wrapped in masking tape to ensure no sharp edges with the cloth over the end to access and clean the interior.

This part took the longest to do as it is rather tough to get access to the edges, however the results outweigh the awkwardness and it s a job well worth doing when the whole assembly is put back together.

Reassembly is the exact reverse of the above process, so by going backwards through the writeup, you should be able to get the interior back together in 25 mins. I lubricated all the internal moving parts with silicone grease as the old grease was solid and the contact points non existent. it is good practice when reassembling to ensure it will work smoothly with the servo motor. Just be mindful that you are screwing into plastic mounts so great care must be taken not to thread or break off parts.

---------------------------------------------------------------------------------------------------------------------------------------------------------

EXTERIOR OVERLOOK AND PRE PREVENTATIVE MAINTAINANCE


On inspection of the exterior, I noticed that the adjustment controls were filthy, had seized and needed a good clean up and lubrication. A good scrub with a toothbrush dowsed in penetrating lubricant gets to work on the parts and allowing a bit of time for it to get into the mechanism is well advised as the parts are quite flimsy and could easily be damaged if forced when adjusting the beam deflection with the allen keys as this operation is done seldom. Once serviced the parts move nice and free.


(The Light is Upside Down)

Also underneath the light itself there are two ventilation shafts which drain and allow condensation to expel. One is covered by a rubber boot, but the other is open. One of mine was blocked completely which I suspect caused the light to fill with water when combined with the bad seal on the back. Once vacuumed out there was a bit of damp on inspection, so I left the whole light in a warm place overnight to ensure it was completely dry.

The back cover which has a rubber seal in the lip which I removed and put it in quite warm water for 20 minutes to de stress and try to get some shape back into it. Once dried, I lubricated inside where the seal sits with a liberal smear of silicone grease before lubricating the seal itself with the same stuff and gently reseated it in the same position as before. Hopefully this will give a good water tight seal on the whole housing.

The whole assembly can now be re-installed back into the car and aligned with the bodywork.


I sanded and polished the plexiglass as they had yellowed and began to get the crazed effect. Here is one final picture of the sanded light with one light after 800, 1200 grit and the other light halfway through polish with a DA machine using Eucryl smokers toothpaste (powder mixed into the correct consistency) which acts like 4000 grit before a thorough polish with a good quality car polish. It just needs sealing with a good wax.

---------------------------------------------------------------------------------------------------------------------------------------------------------

CONCLUSION

I think I have covered everything and hope this helps a lot of people out there that had headlight niggles and the photos can be used as an aid when doing the odd job as its such a tight location to work on. If anything has been missed out, feel free to add.
Last edited by R7VOX on Fri Oct 30, 2015 8:09 pm, edited 1 time in total.

User avatar
ranski
Lifer
Lifer
Posts: 6325
Joined: Tue Jun 29, 2010 2:20 pm
Location: Sutton Coldfield

Re: Headlight Overhaul E85

Post by ranski » Fri Oct 30, 2015 3:03 pm

Top work and write up - I've done about 4 cut & shuts (clear lens | angel upgrades) and the process is a ballache. I might give this route a go if I decide to do another one

Z4 3.0 / Mods done... too many to mention

Mike6
Member
Member
Posts: 763
Joined: Thu Aug 20, 2015 1:17 pm

Re: Headlight Overhaul E85

Post by Mike6 » Fri Oct 30, 2015 6:13 pm

Good write up. As a new Zed owner I have cleaned up the outside of the lights but the bulbs must be candle light. What bulb would be recommended as a decent straight swop and can I change these easily without removing bumper etc Thanks

User avatar
sw4nny
Senior Member
Senior Member
Posts: 1034
Joined: Mon Sep 16, 2013 12:14 pm
Location: Barnsley

Re: Headlight Overhaul E85

Post by sw4nny » Fri Oct 30, 2015 7:05 pm

Osram night breaker ultra are a good improvement as a easy straight bulb swop.

User avatar
rjsimmons
Member
Member
Posts: 172
Joined: Tue Nov 10, 2015 8:56 pm
Location: Virginia
Contact:

Re: Headlight Overhaul E85

Post by rjsimmons » Tue Nov 24, 2015 8:44 pm

Excellent write-up R7Vox, I'll remember to refer to this when mine are due for overhaul.

Question: would removing the lenses be an acceptable method to install the halo's (Angel Eyes) or would it still be preferabl to remove the front clear cover?

-rj
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants." - Thomas Jefferson

User avatar
markplant
Senior Member
Senior Member
Posts: 2957
Joined: Mon Jul 21, 2014 8:16 pm
Location: Sheffield

Re: Headlight Overhaul E85

Post by markplant » Tue Nov 24, 2015 10:20 pm

That's some difference in the last picture, top work
3.0 Manual. Sterling Grey. Cream leather Electric an Heated. Professional Navigation/Sony tablet replacement. Storm Werks . an parts waiting to be fitted

User avatar
Ducklakeview
Lifer
Lifer
Posts: 6354
Joined: Tue Mar 22, 2016 4:08 pm
Location: Merseyside

Headlight Overhaul E85

Post by Ducklakeview » Mon Apr 04, 2016 4:30 pm

Another job to add to my list, as my glass lenses are looking a little cloudy too..

Mike

User avatar
Ducklakeview
Lifer
Lifer
Posts: 6354
Joined: Tue Mar 22, 2016 4:08 pm
Location: Merseyside

Headlight Overhaul E85

Post by Ducklakeview » Sun Jun 19, 2016 9:56 pm

Did mine today, they were filthy, cloudy as anything. Also did the outer lenses. Used the DA with some 1500 and then 3000 discs, followed with Meg's 105 & 205 and a final coat of Autoglym SRP.. The cloudiness to the lenses and a couple of small marks have gone, and they look like new.
Just been out and the light output is MUCH improved!

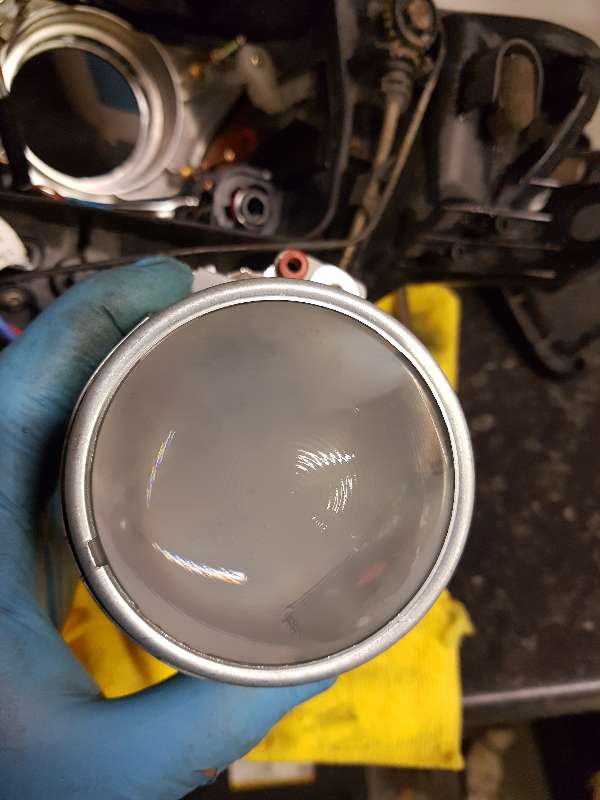

Glass lens before cleaning;

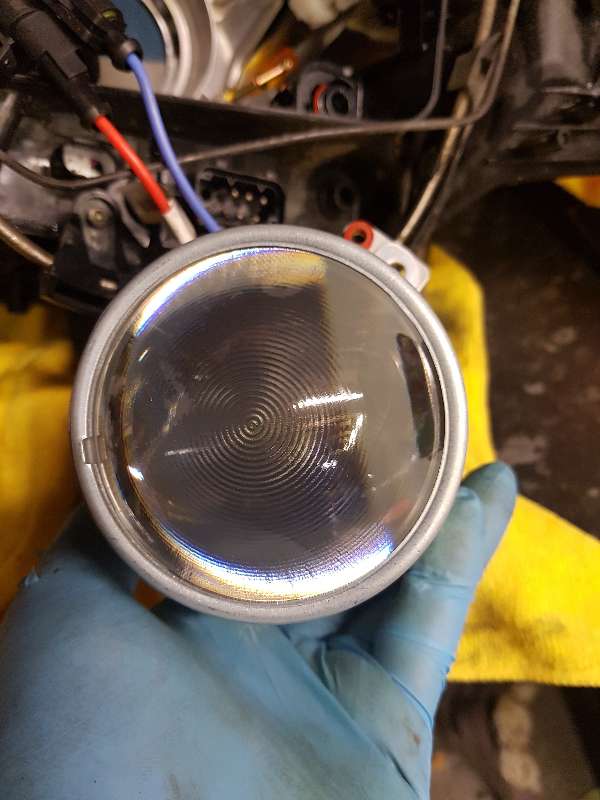

After a clean....
You can even see the shutter/beam deflector now!



A worthwhile hour spent IMHO.

d3matt
Member
Member
Posts: 242
Joined: Wed Apr 27, 2016 5:00 pm
Location: Oxfordshire, UK

Headlight Overhaul E85

Post by d3matt » Wed Mar 22, 2017 11:20 am

My headlights are like candles and are cloudy like this. Before I look at upgrading to HID (don't know what this involves yet) I'd like to do the same to mine as they have gone cloudy too. Is it easy to get the lights out and apart? I want to sand/polish the plastic outers too and would be much easier to do out of the car away from the paintwork.
__________
2003 Z4 3.0i, titan silver with black leather, DLV exhaust, Royal steering wheel retrim.

User avatar
Ducklakeview
Lifer
Lifer
Posts: 6354
Joined: Tue Mar 22, 2016 4:08 pm
Location: Merseyside

Headlight Overhaul E85

Post by Ducklakeview » Wed Mar 22, 2017 11:49 am

d3matt wrote:My headlights are like candles and are cloudy like this. Before I look at upgrading to HID (don't know what this involves yet) I'd like to do the same to mine as they have gone cloudy too. Is it easy to get the lights out and apart? I want to sand/polish the plastic outers too and would be much easier to do out of the car away from the paintwork.
Front bumper off, takes 10-15 mins, and then the lights can be unbolted. I originally fitted 35w HID's to mine, but have since replaced them with 55w ones, the difference literally is, night & day. Now the lights are actually very good at night. I have also fitted 55w HID's to the main beams.

Mike

User avatar
tomrdy
Member
Member
Posts: 305
Joined: Tue Jun 26, 2018 9:16 am
Location: Sydney, Australia

Headlight Overhaul E85

Post by tomrdy » Thu Jul 19, 2018 11:46 pm

rjsimmons wrote:
Tue Nov 24, 2015 8:44 pm

Question: would removing the lenses be an acceptable method to install the halo's (Angel Eyes) or would it still be preferabl to remove the front clear cover?

-rj
I'm curious about this as well. I've only seen diys cutting the light but if the housing part comes out from the back relatively easy in a non-destructive way, what's the reason for needing to break the seals?

I've got a spare light around I might have a fiddle. Maybe it'll be like a "ohhhh that's why!" moment hahah :P

User avatar
tomrdy
Member
Member
Posts: 305
Joined: Tue Jun 26, 2018 9:16 am
Location: Sydney, Australia

Headlight Overhaul E85

Post by tomrdy » Sat Jul 21, 2018 7:05 am

Well for anyone who's interested, I took apart my spare light as per the instructions in OP's post here and I really don't see why you can't do the angel lights this way WITHOUT destroying the original seal via dremel.


80mm lights sitting BEHIND the chrome shroud - actually sits perfectly in there and is supported by the bevel on the plastic cover of the light. Sits so well I daresay some thin mobile-phone-screen-repair strength doublesided tape might do the job (with some extra glue on the inside if youre so inclined).

Some potential issues though:

- Clearance between the ring and the chrome shroud is non-existent at the moment which would probably affect the leveller motor's function. Easily remedies though by filing down the plastic to the LED board's thickness.

- If you want to put the ring on the main beam, you would need a smaller diameter ring OR glue it on the outside which may prove difficult with access only via the two holes. It would be super fiddly and if youre working with glue, potentially a deal breaker.

I only wanted to do single ring though so this might be perfect for me. Might try and do it do my spare light fully to test.
